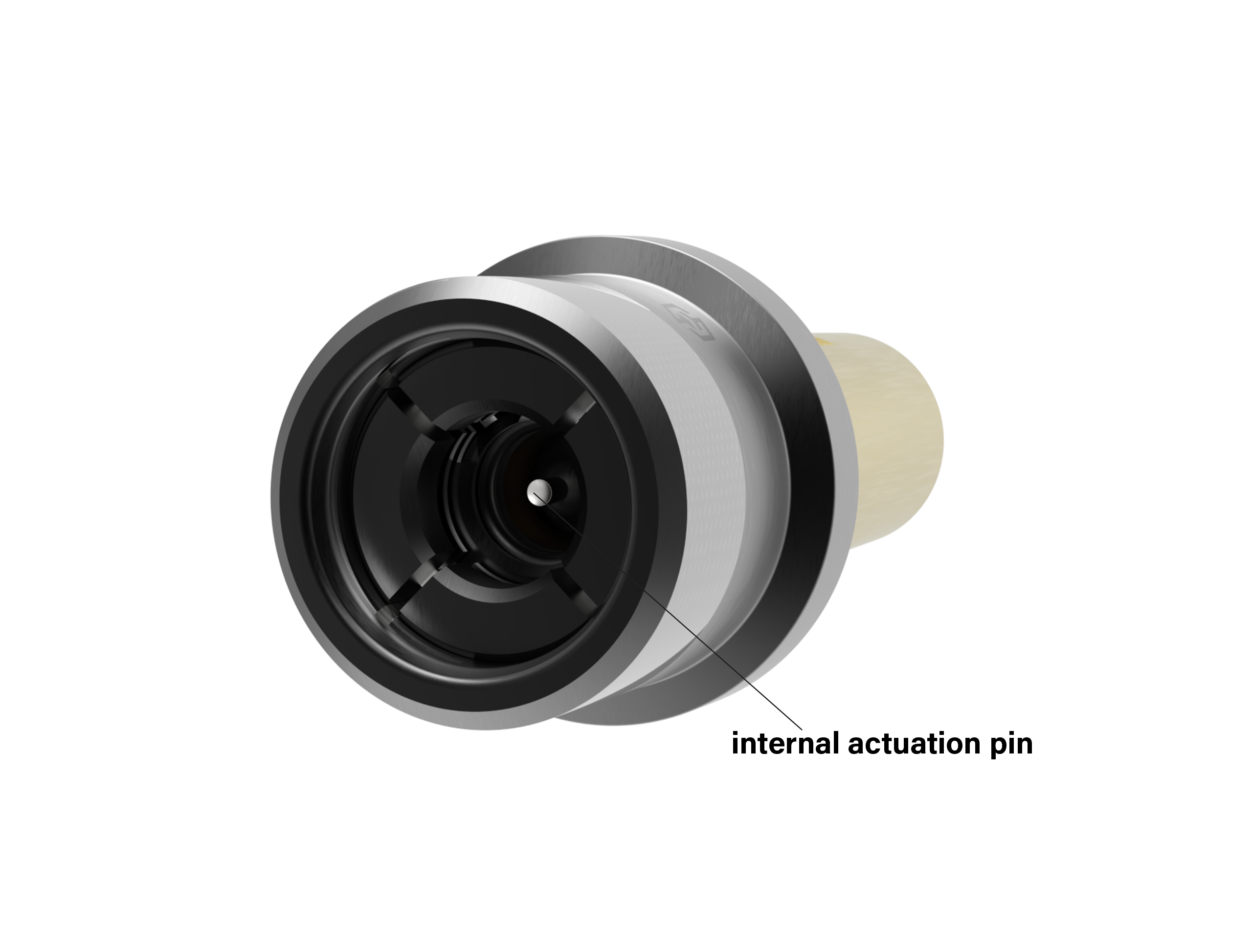

• Internal valve opens automatically upon connection and closes upon disconnection
• Actuated under full pressure due to its mechanical advantage design and used in both vacuum and pressure applications
• Grips behind threads to eliminate potential thread damage with matched flow through the CoreMax® valve for efficient processing.
• Easy sleeve action is ergonomic and eliminates repetative twisting and turning – Push to connect, pull to release

Designed For: burst, evacuation, charge and rework stations for generalized processing. Use at every station to connect to CoreMax® Valve.

Connects To:

CoreMax® Valve

Max Pressure Rating:

10 millitorr (micron) vacuum to 750 psi/51.7 bar

Actuation Method:

Sleeve

Actuation Type:

Burst, evacuation, charge, and rework stations for generalized processing.
