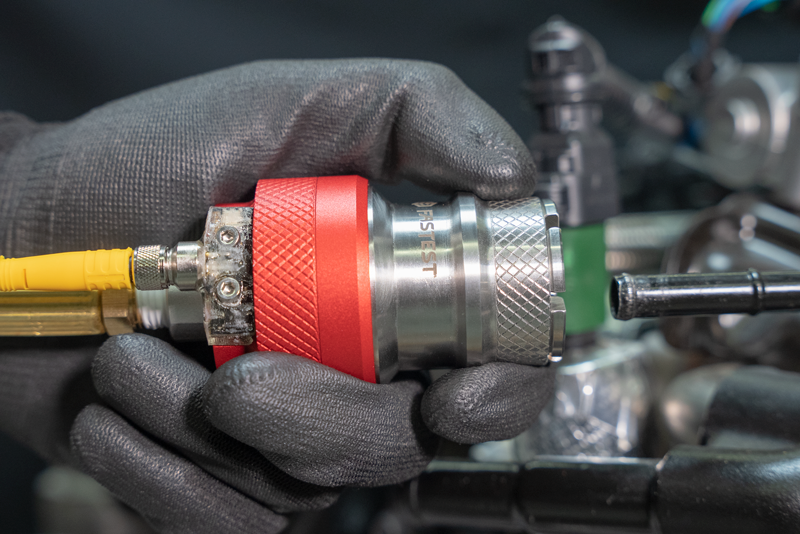

• Fast, safe and repeatable connections to expanded, flared, barbed, beaded and formed end tubes.
• Push to connect onto the threads or fitting and pull sleeve to disconnect.
• Collet design locks securely onto external tube features.
• Floating piston to ensure proper OD/face/ID sealing position.
• Internal shut-off valve stops flow upon disconnection.

ICON™ | Intelligent Connection Technology

ICON™ sealing connection tools generate data and provide LED feedback to improve sealing connection accuracy, maximize production efficiency, and optimize tool maintenance. Available for select models. Learn more.

Designed For: filling, pressure testing, and leak testing.

Connects To:

Expanded | Flared | Beaded | Barbed | Form | Custom

Max Pressure Rating:

Vacuum to 750 psi (51 bar)

Actuation Method:

Sleeve

Actuation Type:

External Tube Feature.
